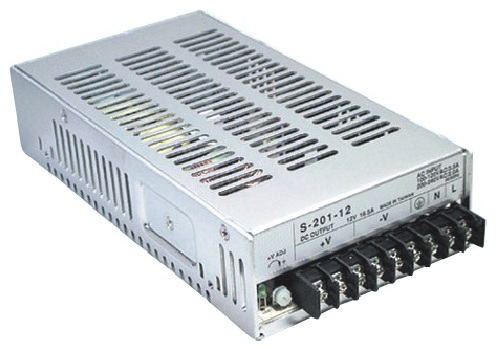

Fonte de Alimentação Chaveada S-201 12V
|
AC input voltage renge Input current lnrush current Leakage current Overload proctection Over-Voltage Protection High-temperature Protection Temperature coeffcients Setup,rise,hold up time Vibration Withstand voltage Isolation resistance Working temperature & Humidity Storage temperature & Humidity Dimension Weight Safety standard EMC standard |
90~132VAC/180~264VAC selected by switch;47~63Hz;254~370VDC 25A/115V 50A/230V 4.5A/115V,2.5A/230V 3.5mA/240VAC 105%~150% Type:Shut off output voltage Reduction:Automatic Recovery 5.75-6.75V 9.4-10.9V 13.8-16.2V 15.5-18.2V 18-21V 27.6-32.4V 33.7-39.2 57.6-67.2V RTH3 90°C cut off output ±0.03%/°C 0~50°C 200ms.100ms.20ms 10~500Hz,2G 10min./1 cycle Period for 60min Each axis I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC I/P-O/P, I/P-FG, O/P-FG: 100M /500VDC -10°C ~+50°C (Refer to output curve drawing) 20%~90%RH -20°C ~+85°C ,10%~95%RH 215x115x50mm 0.9Kgs Design refer to UL1950 Design refer to FCC part 15J class A |
